1) Charging: When raw materials are added to the converter, a significant amount of dust and gas is released.

2) Blowing: The oxygen-blowing process generates intense emissions as it oxidizes impurities in the molten metal.

3) Tapping: During the removal of molten steel, emissions occur that need to be contained.

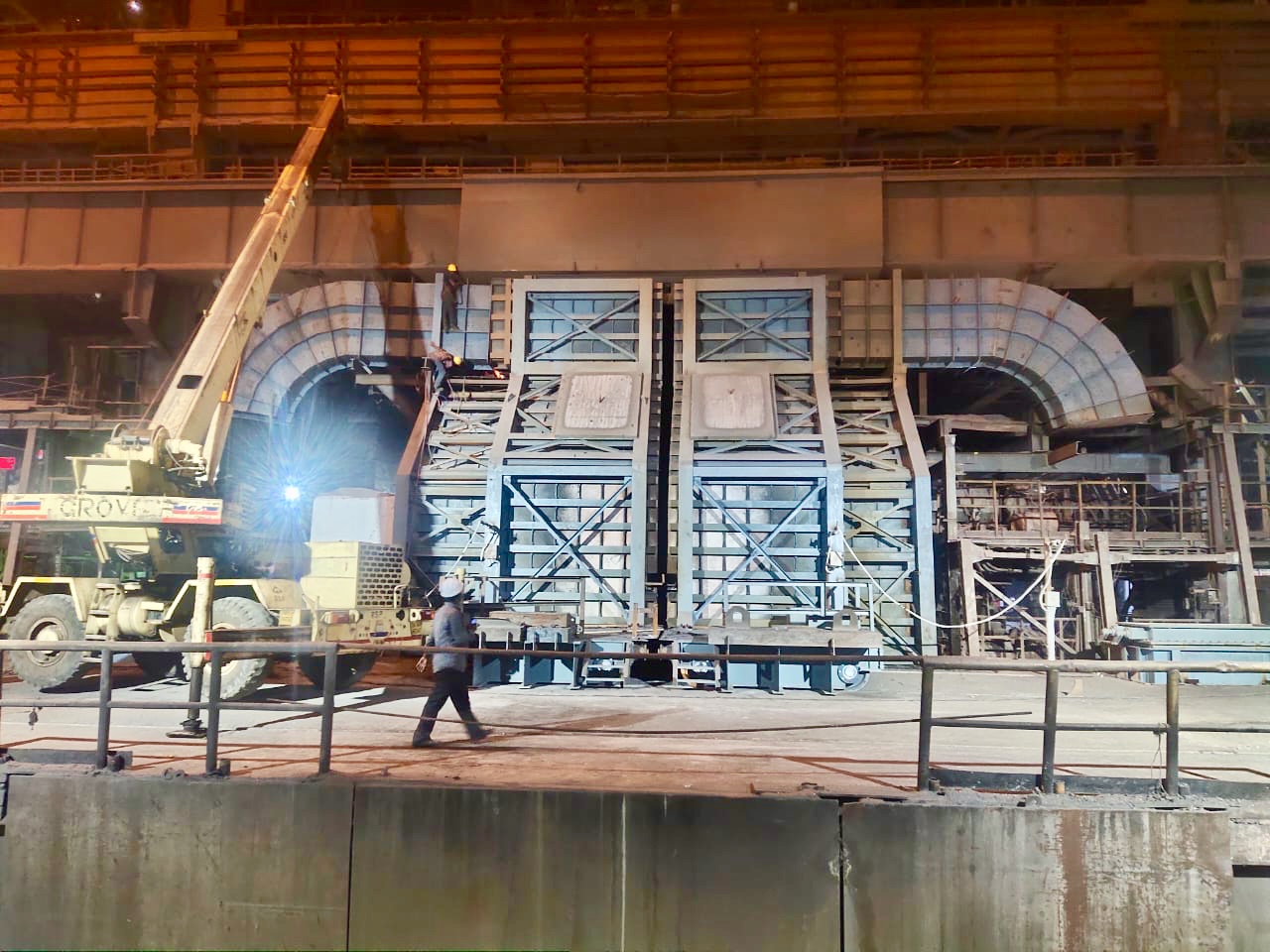

Design and Construction
The design of a dog house is critical to its effectiveness and involves several considerations:

4) Structural Design:
o The dog house is typically constructed from durable materials such as reinforced steel and heat-resistant alloys to withstand high temperatures and abrasive conditions.
o The structure includes a roof and walls that encapsulate the converter mouth, with provisions for access and maintenance.

5) Size and Dimensions:
o The size of the dog house is tailored to the specific converter dimensions and must allow for easy operation and movement of cranes and other machinery.
o Adequate space must be provided for airflow and emission capture.

6) Emission Control Features:
o Ventilation Systems: Equipped with high-capacity fans and ductwork to efficiently extract and direct emissions to a treatment facility, such as a baghouse or scrubber.
o Dust Collection: Incorporates hoppers and chutes for the collection and removal of particulate matter.
o Sealant Systems: Includes seals at the points of contact with the converter to minimize the escape of emissions.

Benefits

Implementing a dog house around an SMS converter provides several key benefits:
1. Environmental Compliance: Ensures adherence to stringent air quality standards and regulations by effectively capturing and controlling emissions.

2. Worker Safety: Reduces the exposure of workers to harmful gases and particulates, thereby improving workplace safety and health conditions.

3. Operational Efficiency: Minimizes disruptions caused by excessive emissions, allowing for smoother and more efficient steelmaking operations.

4. Improved Air Quality: Enhances the overall air quality within the steel plant by reducing the spread of
dust and pollutants.
5. Energy Efficiency: By containing and capturing emissions effectively, energy usage for additional ventilation and cleaning can be reduced.

Challenges and Considerations
a) Maintenance: Regular maintenance is required to ensure the dog house operates effectively, including cleaning ducts and replacing filters.
b) Integration: The dog house must be seamlessly integrated with existing plant infrastructure, including cranes and other equipment, without hindering operations.
c) Cost: The construction and installation of a dog house can be costly, requiring careful budget planning and justification based on environmental and operational benefits.

Conclusion:
The implementation of a dog house around SMS converters is a crucial step towards enhancing
environmental performance and operational efficiency in steel plants. By capturing and
controlling emissions, the dog house not only helps steel plants comply with environmental
regulations but also contributes to a safer and healthier workplace. As environmental standards
continue to tighten, the importance of such emission control technologies will only increase,
making them an indispensable part of modern steelmaking operations.
