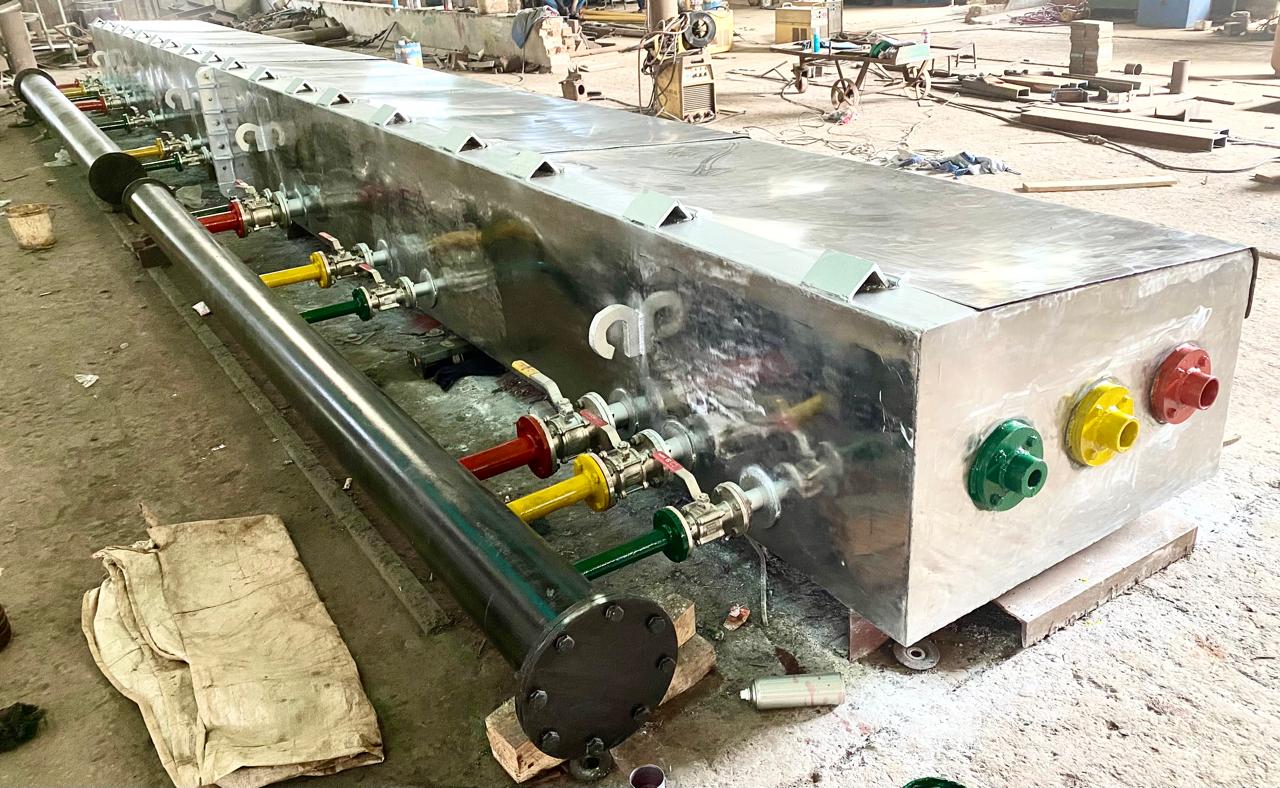

Evcon Turbo TMT Quenching Box
Introduction
The Evcon Turbo TMT (Thermo-Mechanical Treatment) quenching box is a critical component in the production of Thermo-Mechanically Treated (TMT) steel bars. These bars are widely used in construction due to their superior strength, flexibility, and resistance to corrosion. The quenching box plays a vital role in the TMT process, ensuring that the bars acquire their characteristic properties through controlled cooling and heat treatment.
Functionality
The Evcon Turbo TMT quenching box is designed to rapidly cool the surface of hot rolled bars while maintaining a hot core, a process essential for achieving the desired mechanical properties in TMT bars. Key functions include:
1. Controlled Cooling: Utilizes a crank mechanism driven by a motor to deliver consistent and powerful cutting force, ensuring efficient operation.
2. Thermal Gradient Creation: This rapid cooling creates a temperature gradient between the surface and the core, resulting in a hardened martensitic outer layer and a ductile, softer core.
3. Heat Treatment: As the bars exit the quenching box, they are subjected to a self-tempering process where the heat from the core tempers the outer martensitic layer, enhancing the bar’s toughness and ductility.
Design Considerations

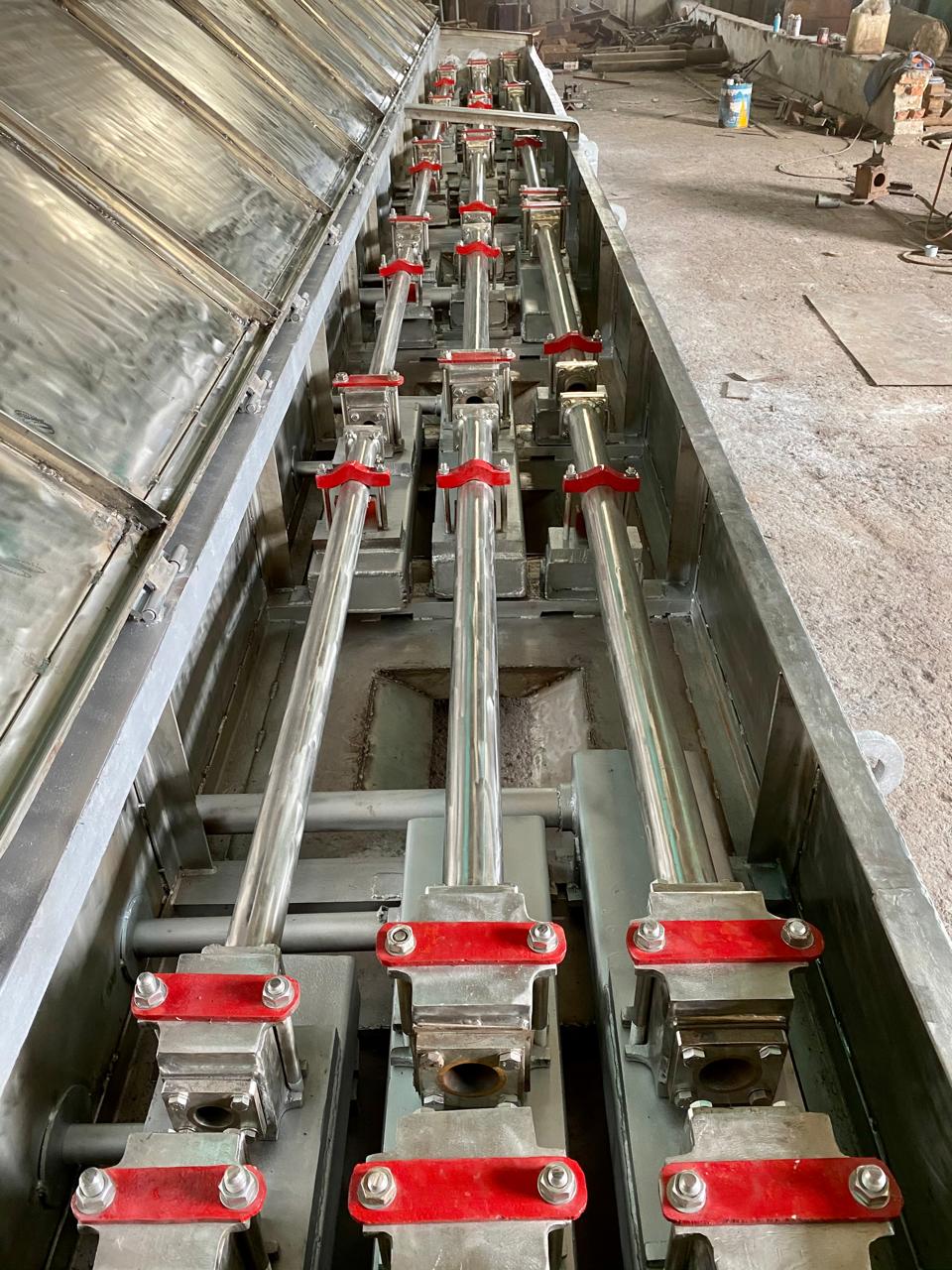

1. Water Jets: The quenching box is equipped with high-pressure water jets arranged in a precise manner to ensure uniform cooling across the surface of the bars.
2. Cooling Efficiency: The design ensures optimal water flow and cooling rates, crucial for achieving the desired metallurgical structure.
3. Adjustable Parameters: Parameters such as water pressure, flow rate, and jet positioning can be adjusted to cater to different sizes and grades of steel bars.
4. Durability:Constructed with high-quality materials to withstand the harsh conditions of hot rolling mills, including high temperatures and constant exposure to water.
Benefits of Evcon Turbo TMT Quenching Box
1. Enhanced Strength:Produces TMT bars with a tough outer layer and a ductile core, resulting in superior tensile strength and elongation properties.
2. Improved Flexibility:The process ensures that the bars can withstand high stress and strain, making them ideal for construction applications.
3. Corrosion Resistance:The hardened surface layer enhances the bar’s resistance to corrosion, increasing its durability and lifespan.
4. Consistent Quality:Precise control over the quenching process ensures uniformity in the properties of the TMT bars, maintaining high quality standards.
Operational Aspects
1. Integration:The quenching box is integrated into the rolling mill process, positioned immediately after the last stand of the rolling mill where the bars are still hot.
2. Automation:Modern quenching boxes are often equipped with automated control systems to monitor and adjust cooling parameters in real-time, ensuring consistent production quality.
3. Maintenance: Regular maintenance of the water jets and other components is necessary to prevent clogging and wear, ensuring optimal performance and longevity.
4. Safety:Safety mechanisms and protocols are in place to manage the high pressures and temperatures involved in the quenching process, protecting operators and equipment.
Applications
- Construction Industry: TMT bars produced using the Evcon Turbo TMT quenching box are widely used in building foundations, columns, beams, and other structural components.
- Infrastructure Projects: Ideal for infrastructure projects like bridges, dams, and highways due to their high strength and durability.
- Seismic Zones: TMT bars are particularly suitable for construction in seismic zones because of their enhanced flexibility and ability to absorb shock and stress.
Conclusion
The Evcon Turbo TMT quenching box is a key technology in the production of high-quality TMT bars. Its precise design and controlled cooling process ensure that the bars meet stringent standards for strength, flexibility, and corrosion resistance. As construction demands continue to evolve, the role of advanced quenching systems like the Evcon Turbo TMT quenching box becomes increasingly important in delivering materials that support modern engineering and architectural requirements.
