Introduction:

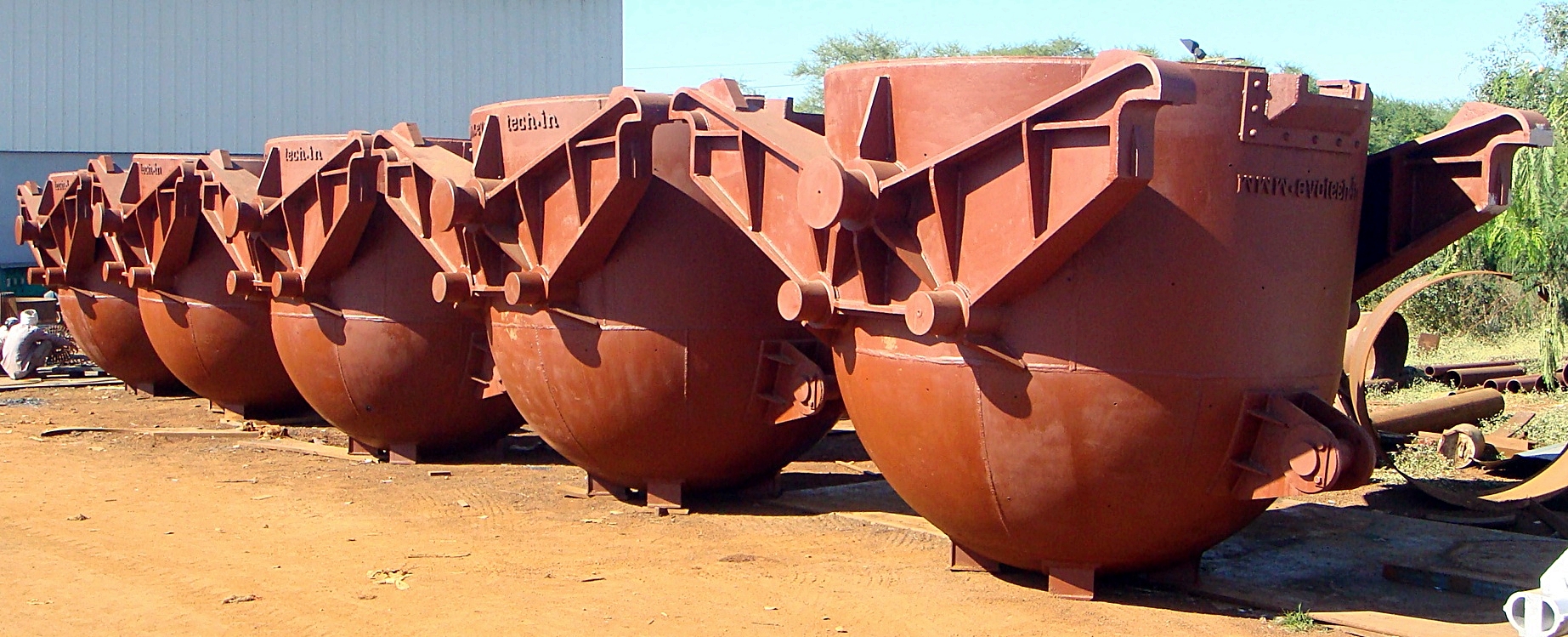

A steel ladle is a vital component in the steel manufacturing process, serving as a vessel for transporting and refining molten metal. It plays a crucial role in handling, treating, and transferring molten steel from the furnace to the casting machine or molds. The design and functionality of a steel ladle are critical for ensuring the quality and efficiency of steel production.
- High-Temperature Resistance: Constructed from refractory materials capable of withstanding the extreme temperatures of molten steel, ensuring durability and reliability.
- Robust Construction: Engineered to handle the mechanical stresses and thermal cycles associated with steel production, providing a long service life.
- Efficient Insulation: Equipped with advanced refractory linings to minimize heat loss and maintain the desired temperature of molten steel during transport and processing.
- Customizable Design: Tailored to specific operational requirements, including various capacities, shapes, and configurations to fit different production setups.
- Enhanced Safety: Features such as heat shields, insulated handles, and secure lifting mechanisms to protect personnel and equipment from the hazards of molten metal.
Components of a Steel Ladle:
- Shell: The main body of the ladle, usually made from high-strength steel to provide structural integrity and support.
- Refractory Lining: An internal lining made of high-temperature resistant materials, such as magnesia-carbon bricks, to protect the shell and insulate the molten steel.
- Bottom Plate: The base of the ladle, designed to withstand the weight and thermal load of the molten steel, often reinforced with additional refractory layers.
- Spout or Nozzle: A controlled outlet for pouring molten steel, designed to ensure a smooth and precise flow during transfer to molds or casting machines.
- Lifting Mechanism: Includes trunnions, lifting lugs, or a bail arm to facilitate safe and efficient handling by cranes or other lifting equipment.
- Heat Shields: Protective barriers to shield operators from radiant heat during ladle handling and pouring operations.
Operational Principle
The steel ladle operates based on the following steps:
- Filling: Molten steel is poured into the ladle from the furnace, typically using a teeming ladle or transfer ladle for initial filling.
- Transport: The filled ladle is transported to the next processing stage, such as secondary metallurgy or continuous casting, using cranes or ladle cars.
- Treatment: In secondary metallurgy, the ladle may be used for refining processes such as desulfurization, deoxidation, alloying, and temperature adjustment.
- Pouring: The molten steel is poured from the ladle into molds or a casting machine. The spout or nozzle ensures controlled flow and minimizes splashing.
- Cooling and Maintenance: After pouring, the ladle is cooled and inspected for any necessary maintenance or relining before the next use.
Applications in Steel Manufacturing
Steel ladles are utilized in various stages of the steel production process, including:
- Primary Steelmaking: Transporting molten steel from the blast furnace or basic oxygen furnace (BOF) to secondary metallurgy or casting.
- Secondary Metallurgy: Refining and treating molten steel to achieve desired chemical composition and temperature before casting.
- Continuous Casting: Delivering molten steel to the casting machine for the production of billets, blooms, slabs, and other semi-finished products.
Conclusion
Steel ladles are essential components in the steel manufacturing process, enabling the efficient handling, transport, and treatment of molten steel. EVO TECH’s steel ladles are designed with high-temperature resistance, robust construction, and advanced insulation to meet the demanding requirements of modern steel production. By incorporating superior materials and engineering excellence, EVO TECH ensures that its steel ladles deliver outstanding performance, safety, and reliability, contributing to the overall efficiency and quality of steel manufacturing operations.
